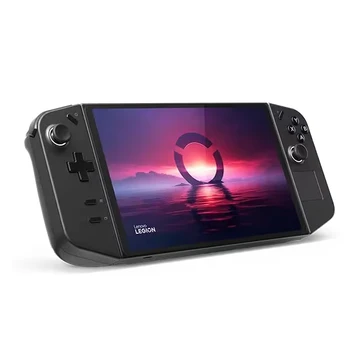

The Lenovo Legion Go is a handheld gaming computer developed by Lenovo, released in October 2023, and part of their Lenovo Legion line of gaming products.
- Display: 8.8” QHD+ with 144Hz refresh rate
- Processor: AMD Ryzen Z1 Extreme
- Memory: 16GB 7500Mhz LPDDR5X RAM
- Storage Options: 256GB, 512GB, or 1TB
- Operating System: Windows 11 Home
- Dimensions: With controllers attached, you’re looking at 11.8” x 5.15” x 1.61”
- Weight: 1.88 lbs with controllers on
- Battery: 2-cell 49.2WHr with Super Rapid Charge
Table of Contents
Specs
Lenovo Legion Go | |
| Dimensions (L x W x H) | Base Module: (mm): 210mm x 131mm x 20mm (inches): 8.27″ x 5.15″ x 0.79” Base Module w/ Controllers Attached: (mm): 299mm x 131mm x 41mm (inches): 11.8” x 5.15” x 1.61” |
| Weight | Controllers Detached: 640g (1.41lbs) Controllers Attached: 854g (1.88lbs) |
| Color | Shadow Black |
| Display | 8.8” QHD+ (2560 x 1600) IPS; 16:10 10-point Touch (144Hz / 97% DCI-P3 / 500nits / 83%AAR |
| Touchpad | Multi-finger |
| Processor | Up to AMD Ryzen Z1 Extreme with AMD RDNA Graphics |
| Memory | 16GB 7500Mhz LPDDR5X on board |
| Storage | 256GB / 512GB / 1TB PCIe 4.0 NVMe M.2 2242 |
| Operating System | Windows 11 Home |
| Battery | 2-cell 49.2WHr Super Rapid Charge Controller battery capacity: 900mah |
| Power Adapter | USB Type-C, 65W AC adapter Output: 20V DC, 3.25A, 65W Input: 100~240V AC 50/60 universal |
| Ports | Top 3.5mm audio combo jack 1 x USB Type-C (USB 4.0, DisplayPort™ 1.4, Power Delivery 3.0) 1 x microSD card reader Bottom 1x USB Type-C (USB 4.0, DisplayPort 1.4, Power Delivery 3.0) |
| Control and Input | Gamepad Controls Legion L/RABXY buttons D-pad L & R hall effect joysticks L & R bumpers L & R analog triggers Legion L & R buttons View button (L) Menu button (L) Trackpad (R) 6 x assignable grip buttons 1 x mouse wheel (R) 1x mouse sensor (R) 2 x controllers release buttons Haptics: HD haptics Gyro: 6-Axis IMU |
| Audio | 2 x 2W SpeakersDual-array near-field microphone |
| Connectivity | 2 x 2 Wi-Fi 6E (802.11 ax), Bluetooth 5.2 |
| Software | Legion Space Xbox Game Pass Ultimate – Complimentary 3-month membership |
Common Issues
Fan Noise/Behavior Issues
- Problem: Users report the fan behaving strangely, often not spinning until “Full Speed Mode” is activated, or making excessive noise, especially in sleep mode. Sometimes, the fan might not be detected by diagnostic tools.
- Potential Fixes:
- Toggle Fan Modes: If the fan isn’t spinning, try activating “Full Speed Mode” in Legion Space or the quick settings panel. Once it kicks in, you can often revert to “Smart” or “Custom” modes, and it will continue to work until the device is shut down.
- BIOS/Firmware Update: Ensure your BIOS and firmware are up to date. These updates often contain improvements for fan control and power management. You can find them on the Lenovo Support Website or via the Lenovo Vantage app.
- EC Reset (Embedded Controller Reset): Disconnect all power sources, then hold the power button for 30 seconds. This can reset the fan control logic.
- Check Power Settings: In Windows, go to “Settings > System > Power & sleep” and “Control Panel > Power Options” to ensure power plans are optimized and not causing conflicts with fan behavior.
- System File Checker (SFC) & DISM: Run
sfc /scannowandDISM /Online /Cleanup-Image /RestoreHealthin an elevated Command Prompt to check for and repair corrupted system files. - Check for Background Processes: Use Task Manager to see if any applications are causing high CPU/GPU usage, which could trigger unusual fan activity.
- Dust Accumulation: While less common for a newer device, dust can eventually impede fan function. If the device is older, carefully cleaning the vents might help.
- Contact Support: If the fan is not detected in BIOS or diagnostic tools, or if the issue persists after all troubleshooting, it might be a hardware fault requiring a warranty claim.
Controller Issues (Disconnection, Malfunction, Dead Zones, Wobble)
- Problem: Controllers disconnecting, failing to connect, malfunctioning (e.g., joysticks stopping), having dead zones, or wobbling when attached.
- Potential Fixes:
- Re-attach/Re-pair: For disconnections, re-attach the controllers to the tablet. If connected to an external device, disconnect them first, then re-attach to the tablet.
- Controller Reset:
- Pin Reset: Use a SIM card ejection pin to depress the reset hole above the slide rail of the controller.
- Factory Reset:
- Left controller: Press Legion L + LB + LS simultaneously.
- Right controller: Press Legion R + RB + RS simultaneously.
- Note: This will delete data stored in the controller.
- Joystick Calibration:
- Hold the trigger and the joystick button for a few seconds until the light turns violet.
- Rotate the joystick three times around.
- On the right controller, press the B button. On the left controller, press the D-pad Right button to end calibration.
- Update Controller Firmware: Check the Lenovo Support Website or Legion Space for controller firmware updates. These often address performance and connectivity issues.
- Reinstall Legion Space: If controller issues seem software-related, try uninstalling and reinstalling Legion Space from the Lenovo support page.
- Addressing Wobble: Some users have found that placing small pieces of electrical tape on the top and bottom of the controller rails (where they slide into the tablet) can reduce wobble. Be careful not to create too much resistance.
- External Controller Not Recognized: For some games, you may need to:
- Reconnect the controller (especially for FPS mode).
- Restart the game (e.g., Call of Duty).
- Switch to DInput mode (hold Legion L + RB for a few seconds) for older games, then switch back to Xbox mode (same combo) if needed.
Battery Drain/Life Issues
- Problem: Shorter than expected battery life, or battery draining even when plugged in (especially during demanding games).
- Potential Fixes:
- Reduce Screen Brightness: This is the most significant power-saving measure. Adjust the slider in settings to a comfortable, lower level. Consider enabling adaptive brightness (though some users disable it to prevent flickering).
- Close Background Apps: Close applications that are not in use.
- Disable Unused Connectivity: Turn off Bluetooth and Wi-Fi when not needed. Unplug USB devices when done.
- Power Saving Mode: Enable “Power Saving Mode” in your system settings or through Legion Space.
- Adjust In-Game Settings: Lower graphics settings, resolution, and frame rates in games to reduce the workload on the hardware, thereby consuming less power.
- Monitor Power Usage: Use the “Battery & Power Saving Mode” or “Power Usage Detection” in settings to identify apps draining the most battery.
- Avoid Overheating: High temperatures degrade battery health. Avoid playing in direct sunlight or on hot surfaces. It’s generally recommended not to charge and play demanding games simultaneously, as this generates more heat.
- Optimal Charging Habits: Avoid draining the battery completely. Charge it when it reaches around 20%.
- Charging Speed in BIOS: Some users have found a setting in BIOS to adjust charging speed under high load, which might help.
- Specific Driver Uninstall (Advanced – Use with Caution): Some Reddit users have reported that temporarily uninstalling specific audio and USB drivers (Realtek Audio Device and certain AMD USB 3.10 eXtensible Host Controller entries) can significantly reduce idle battery drain. This is an advanced fix and may disable audio or controller functionality until a restart. Proceed with caution and ensure you know how to revert changes.
- Higher Wattage Charger: The included 65W charger might not be enough to prevent drain during very demanding games. Using a higher wattage (e.g., 90W or more) USB-C PD charger might help maintain charge.
Software Glitches (Windows, Legion Space)
- Problem: General software unresponsiveness, slow UI, Legion Space issues (e.g., resolution switching, upgrade failures).
- Potential Fixes:
- Update All Drivers: Use Lenovo Vantage or the Lenovo Support Website to ensure all drivers (graphics, chipset, audio, etc.) and BIOS/firmware are up to date.
- Update Windows: Ensure your Windows 11 installation is fully updated.
- Reinstall Legion Space: For specific Legion Space issues, a clean reinstall of the application can often resolve problems.
- System File Checker (SFC) & DISM: As mentioned above, run
sfc /scannowandDISM /Online /Cleanup-Image /RestoreHealthto fix corrupted system files. - Clean Boot: Perform a clean boot to identify if a third-party application is causing conflicts.
- Fast Startup (Windows): Some users report issues with “Fast Startup” causing shutdown problems. Go to “Control Panel > Power Options > Choose what the power buttons do” and uncheck “Turn on fast startup.”
- Check Event Viewer: Look for critical errors or warnings in Windows Event Viewer that might pinpoint the cause of persistent issues.
- Factory Reset/Windows Reinstall: As a last resort for persistent software issues, a factory reset or a clean reinstall of Windows 11 can resolve deep-seated software conflicts.
Screen Flickering
- Problem: The screen rapidly and continuously flashes.
- Potential Fixes:
- Update Graphics Drivers: Outdated or corrupted graphics drivers (AMD drivers in this case) are a common cause. Update them via Lenovo Vantage or AMD’s website.
- Adjust Refresh Rate: In Display Settings, try adjusting the screen’s refresh rate. A higher refresh rate can sometimes reduce flickering.
- Disable Adaptive Brightness (CABC): Windows’ adaptive brightness feature can sometimes cause flickering. You can disable it in “Start > Settings > System > Display.”
- Check for Loose Connections: While less common for an integrated screen, ensure no physical stress is being applied to the display.
- Test in BIOS: Check if the flickering occurs in the BIOS screen. If it does, it’s more likely a hardware issue.
- Hardware Issue: If all software troubleshooting fails, the screen flickering might indicate a faulty display panel, requiring contact with Lenovo support for repair or replacement.
